Review: Deviser S7200

Deviser S7200

The ultimate TV meter for TV, CATV, SAT, IPTV and fibre with integrated TS analyser and full spectrum analyser.

Can you find the new S7200? It's the one with the HUGE screen on the left!

Are these two spectrum analyser? Yes, but the S7200 is actually a full TV analyser, which happens to feature a full spectrum analyser!

After getting used to the S7200, one notices the lack of demodulation of DVB signals on the dedicated spectrum analyser...

The S7200 is a smaller form factor than the S7000, but the screen is much bigger! Also, you can easily hold it with one hand, which is very nice.

So much thinner!

Notice how the ASI In/Out ports and the CI have moved to the side panel.

Smaller, thinner, bigger TOUCH screen, faster, more functionality, bigger harddisk - everything is better on the S7200 and don't forget how great the S7000 is to begin with...

Deviser is a well-known manufacturer from China, with a secondary headquarters in the USA, which is known for its HF measuring instruments. Deviser develops and manufactures professional equipment and in this case “China” stands for highest level in R&D!

The Chinese website is: http://www.deviser.com.cn/
The US website is: http://www.deviser.com/ and http://www.devisertek.com/
The German distributor is: http://www.symarix.de/

The Deviser S7000 has been tested by myself for TELE-audiovision 4 years ago, and I can recommend to any reader to review the test report of the S7000: even at that time, the meter was convincing in its entirety, both in the range of functions and in the measurement accuracy.

Here are the links:

• Deviser S7000 Review - Part 1
• Deviser S7000 Review - Part 2

When I got the S7200 as pre-production device for the test from the foreign exchange, I had to ask therefore, what could be better at the S7200, because the S7000 is still in my test centre is still in use and leaves nothing to be desired.

As a side note, TELE-audiovision unfortunately ceased its operation, hence why I publish this test report on my blog.

To start with, here are the new features of the S7200, compared to the S7000:

• Touchscreen: Yes! You can now directly touch the functions on the screen or, for example, move the markers with your finger. Great: you can zoom in and out with two fingers in the spectrum, pull the frequency left and right, adjust the amplitude up and down - everything works just as you would expect from an iPhone. The operation improves enormously, but you can still use the device with the mechanical keys – i.e. if you have dirty fingers and want to maintain the screen clean.
• Operation: Deviser has not simply further developed the S7000. Instead, Deviser took the design and control of its spectrum analysers and used them as the basis for the S7200. Therefore the operation and the external appearance now resembles other Deviser test equipment. This allows for optimized GUI development and easier learning curve for the user when different Deviser devices are available.
• Spectrum analyser: Deviser not only took over the housing and the user interface from the test equipment line, but also the spectrum analyser function. This means that the S7200 is not a TV/SAT meter with some reduced spectrum analyser functions – it is indeed a true spectrum analyser with integrated TV/SAT field meter! If the spectrum analyser in the S7000 is already well above average for this device segment, the spectrum analyser in the S7200 surpasses everything I have been supplied in the test centre.
• Fibre-optic input: The S7200 has been equipped with a fibre-optic input, which can also be used to measure optical signals. These are converted internally to HF signals and can then be analysed with the various measuring functions.
• Network: The S7200 now offers two RJ-45 jacks and can be connected to the network twice. Why? One network port can be used for IPTV, while the second network port is available without restriction for the remote control of the meter. Two ports? No: with the WIFI option, there are three possible network connections...
• The housing is flatter, which makes the S7200 slightly smaller (although width and height remain the same). The new touch screen, on the other hand, is somewhat larger than the S7000 screen. The protection bag has been enormously improved and battery autonomy has been extended (up to 8 hours of operation).
• TS Analyser: The integrated TS analyser, which was already available in the S7000, has been improved again and now, for example, the bandwidth can also be displayed as a cube diagram. This is extremely useful as one can be recognize immediately, which services in the stream need which bandwidth or whether a service is not active at all.
• Instead of 20MB of internal memory for screenshots, the S7200 has the option of using a 32GB SSD hard disk from which a whopping 29GB is available for screenshots and transponder stream recordings. And yes, I am talking of recording the full TS stream – not just one or few services contained within!

Of course, there are other differences and improvements, which I will discuss in the following review.

Since it is a pre-production test device, I have received it without further packaging and accessories. The device came only with the power supply, which provides an output of 12V with a maximum current of 5.0A. Thus it is also compatible with the S7000 measuring instrument. I welcome this because if you already have an S7000, you do not have to worry about which power supply belongs to which measuring device when purchasing an S7200.

The same applies, for example, to the external GPS mouse that came with my S7000: it works directly with the S7200.

Description of the device

The S7200 differs externally from the S7000 because it is based on a different hardware platform. It looks much more similar to the DS2800 (cable TV analyser).

The front panel consists of a giant screen with six buttons: channel list, file manager, direct saving of the current screen, a key for an auto test mode, which under the current firmware is not yet provided with any function, a button for the settings menu and the HOME button.

Three key groups are located to the right of the display. The top has three buttons for quick access to the TV analyser, the spectrum analyser, the selection of the signal input (HF, optical or ASI), as well as, the voltage output (for LNB, DiSEqC and amplifier).

In the middle are the cursor keys (up/down and left/right), as well as a backspace and the ENTER key.

The lower keypad contains the numeric keys with alphanumeric labels and a Delete key.

On the lower right there is a separate power-on button and a status LED to indicate the battery charging process.

Side panels

On the left side are the ventilation slots and a practical loop, which allows you to hold the S7200 safely without the bag. Due to the versatility of the S7200, it will be used with or without a bag, depending on the application: on the roof, certainly with a bag and neck strap, in the head station or in the laboratory rather without a pocket.

On the right are the Ethernet connectors, the USB jack, power plug, CI slot for a CAM as well as ASI input and output.

The top contains the RF input and the optical APC input.

Unlike the S7000, there are no inputs on the back and this is good, because the access to the ASI inputs and outputs was a bit fiddly on this model. There is slot for Kensington-compatible locks. And yes: I have looked and this slot goes not only by plastic, but also features an inner metal housing. If you want to get rid of the S7200 from the lock by force, it wouldn’t be an easy task due to its robustness.

Spectrum analyser

The great highlight of the S7200 is undoubtedly the integrated spectrum analyser. I mean actually an integrated spectrum analyser and not a simplified spectrum analyser mode as is usually present in TV measuring devices.

Deviser has installed a complete spectrum analyser in the S7200, or rather, as whispered to me by the development engineer, the S7200 is actually a true spectrum analyser to which the TV measurement function was added.

From Deviser’s point of view, this makes sense, of course, because in the development and production, similar to the car industry, the same hardware can be built and the operation and even the housing become more uniform, reducing costs.

For the customer, it is also a big advantage: the functions of a spectrum analyser go far beyond the traditional spectrum analyser mode of an ordinary TV meter and since Deviser offers a range of measuring devices, the integration into the various devices is all the easier.

For most TV/CATV/SAT field meters, spectrum analysis is an important component of the measurements to be carried out. On the spectrum, for example, a satellite can be detected immediately before the signal can be locked, which makes the alignment of a satellite antenna immensely easier.

For these measurements, the spectrum analyser can be constructed quite simple: usually fixed values are sufficient for RBW, VBW and SWEEP. Even the span can often not be chosen freely, but only in predefined steps. This reduces the cost of the spectrum analyser, but the measuring possibilities are also reduced if one has special measurement tasks.

For a true spectrum analyser, the user can configure RBW (Resolution Bandwidth), VBW (Video

Bandwidth), and SWEEP as required, with the SWEEP speed set according to the selected RBW and VBW, and normally set automatically by the spectrum analyser.

A heterodyne spectrum analyser is based on the fact that a mixer runs the frequency range and converts the current frequency into the input frequency of the analogue-to-digital converter (ADC). The resolution bandwidth RBW determines the step width: the larger, the faster the spectrum can be displayed, the smaller, the higher the resolution shown.

The video bandwidth functions like a filter to minimize the background noise produced by the spectrum analyser. This is achieved by averaging the measured values ​​digitized by the analogue-to-digital converter.

The speed at which the frequency range is passed by the mixer is configured with the SWEEP parameter. As a result, the question frequently asked by TV measurement devices is "how fast is the spectrum". With a true spectrum analyser, the speed of the spectrum can be adjusted more or less freely. But as always, there are limitations. If you select a too small SWEEP value, the spectrum is displayed faster, but the ADC cannot digitize a sufficiently large number of samples and the signals are not visible.

In addition, there are settings for displaying the signal: maximum values, minimum values, average values. Up to four independent curves, called "trace", can be defined and displayed as desired. For example, you can represent the maximum, minimum, and mean value of the spectrum at the same time!

This sounds terribly complicated at first, but here the all-clear: if you put everything on AUTO, then you can go directly with the S7200 without tedious study or learning and still get the best spectrum, which I have seen so far in a TV meter. In a natural way, you will quickly discover the various spectrum functions and you will quickly get a lot more out of the spectrum, as you have seen before: suddenly you can see transponders with very small bandwidths, which have never been noticed before or while monitoring DVB -T/T2 transponders you start noticing aviation communications, also.

In the test of the S7200, I compared the spectrum mode directly with a full-range spectrum analyser (the Siglent SSA3000X) and came to the conclusion that the S7200 comes close to its functionality. The main difference is that the S7200 is either set for the frequency range of 4MHz - 1220MHz or 950MHz-2150Mhz, while the spectrum analyser can display a continuous frequency range from 9kHz to 2.1GHz.

Turning the Deviser S7200 on

Pressing the power button will start the S7200. After 3 seconds, a progress bar will appear indicating the boot process, and the device is ready for operation after 15 seconds.

In the main screen, virtual buttons appear on the right, which can be tapped directly on the screen. You can also select these with the hardware buttons. Here you can switch between the following modes:

• TV: Measurements for analogue and digital TV transponders, as well as FM radio
• SAT: measurements for satellite receivers
• IPTV: Measurements of IPTV stations on the network
• OPM: optical measurements in fibre optic cables
• WiFI: WLAN measurements

The main screen changes according to the selected mode.

TV mode

In TV mode, six options are available, which appear as apps: Measurements, Spectrum, Tilt, Barscan, Passive Sweep, CNR and CTB/CS0.

If you select measurements, all relevant parameters of the selected channel appear on the screen. In addition, a large bar graph shows the reception level/power. This is visible from a good distance, which simplifies the antenna alignment when the device is put on the floor and you are looking at the screen while adjusting the antenna.

From this main screen you can switch to the constellation diagram. Here all possible modulations can be displayed and zoomed in the individual quadrants.

The option to display the constellation diagram for a selected carrier is remarkable. Since a digital transponder consists of a large number of individual carriers, the constellation diagram of a single carrier can be specifically displayed and possible problems can be traced, for example when individual carriers are disturbed by the waves of a neighbouring transponder.

The "Passive Sweep" measurement I have encountered in yet no other TV meter. In a first step, the user measures a reference signal, for example the CATV signal at the output of the head station. This measurement is now stored in the S7200 (up to 8 reference measurements can be stored). In a second step, the S7200 is connected to a TV socket and can compare the measured signal spectrum-similar to the selected reference signal. The advantage of this is that the S7200 displays the deviation in dB directly on the displayed spectrum!

SAT mode

In SAT mode three apps are available: measurements, spectrum and antenna.

As in the TV mode, the measurements show on a screen all the relevant reception parameters, which can also be edited directly by the user. Beneath these parameters the screen shows: Power, CNR, MER, CBER and VBER. The power is simultaneously displayed as a bar.

Using the softkeys it is possible to switch to the constellation diagram or to the antenna mode.

The constellation diagram supports the usual modulations for satellite reception and offers a particularly high-resolution.

The antenna mode is used for antenna alignment and indicates the reception power of one or more transponders of the selected satellite. At the same time, due to the geographic position, the Deviser S7200 calculates the reception parameters of the antenna: direction, azimuth, elevation and skew. The geographic location can be entered manually in the configuration menu or automatically determined using a GPS mouse. The manual input can be useful, even if you have a suitable GPS mouse available, for example to setup a customer antenna in the workshop, before going out for the installation.

A suitable GPS mouse can be purchased at a favourable price because the S7200 supports the usual NMEA protocol.

In this app, motorized antennas are controlled, you can turn these stepwise or in time intervals west or east and at the same time you can see the reception performance of the selected transponders as a bar chart.

Correct antenna positions can now be stored in the DiSEqC folder using the AUX button (top right). All DiSEqC-1.2/USALS commands are supported, including the commands for programming the limits.

Unfortunately it is not possible to move the AUX window with the finger within the screen as it does hide important screen information, while being displayed.

Optical mode

Once the optical mode is activated and a fibre glass cable connected, its signals are converted to RF and fed into the TS analyser.

But apart from this built-in converter, the Deviser S7200 can actually measure the optical power on the common wavelengths!

IPTV mode

Just as the optical mode, the IPTV mode will act as a receiver for IPTV streams and forward them to the TV Analyser.

As with the Deviser S7000, the S7200 does an incredible job in detecting any IPTV stream on the connected network cable, without any user configuration being required. Pure magic!

TS Analyser

Conventional modern TV field meters are normally allow the live image reproduction of analogue and digital transponders. Even MPEG4 encoded channels can nowadays be decoded by most current field meter.

What the Deviser S7200 has to offer in this respect has already been shown with the previous model, the S7000: instead of a simple TV playback, possibly with a few NIT information, the S7200 offers a complete TS analyser!

No matter where the transport stream comes from (via the RF input, the optical input, the ASI input or as IPTV via the network input), a wide range of analysis options are available.

Of course, the picture is displayed (whether MPEG2 or MPEG4), but with the option to show all possible parameters, too. All? Yes! Be it measurement parameters for packet latency, bandwidth consumed by any service, even the complete NIT table can be analysed. In extreme cases, the S7200 can even record individual packets of the transport stream and display them as bytes in decimal or hexadecimal format.

Conclusion

With the S7200, Deviser has developed an incredibly versatile measuring instrument whose range of applications goes from the testing of modulators in broadcasting to the alignment of the SAT receiving antenna of the end customer.

With a single device complex HF situations can be displayed in the spectrum analyser, PCR time delays can be detected with the TS analyser or the constellation of an individual carrier can be observed within the interlocked transponder.

I could not create a scenario in which the S7200 did not provide a suitable measurement. It is simply the most complete TV meter in its class and the S7200 does not carry the description "TV Signal Analyzer" for nothing!

Now some picture, which speak for themselves:

Let's play with the spectrum analyser...

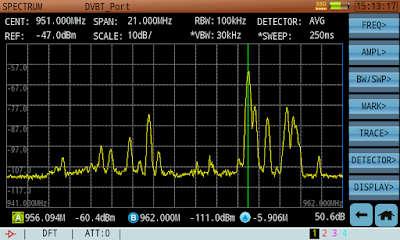

Setting Marker A at 956MHz by just touching the screen.

Same signal rendered by the Siglent SSA3021X - about 1.5dBm difference, which is easily explained by the DC blocker I am using here.

Detail view of a DVB-T transponder.

The TV analyser allows to monitor indiviual packets - you can even display or save the relevant bytes!

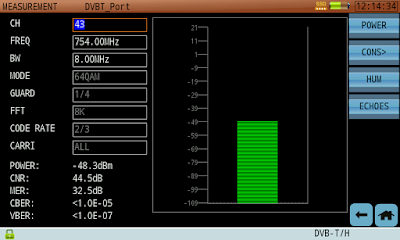

Measurment overview with all parameters on one screen. Signal power is shown as a big bar, too. Great if you are busy adjusting the antenna.

Constellation diagram - very detailed.

You can actually look at the constellation diagram of individual carriers! In this case, carrier 50 is a TPS carrier, but not much is happening...

...but there is signal on carrier 51, which is a DATA carrier.

Here another example of optical measurment, showing the simultaneous measurments of three wavelength.

Activate the optic to RF convertion and you are set to further analyse the signal!

Here we are looking at a signal delivered through optical fibre, carrying digital DVB-C transponders.

This TV operator crams a whole lot of analogue channels into the fibre! Clearly he can, because there are no significant losses during distribution. This optic to RF conversion is normally done by the router installed by the operator. In this case, the Deviser S7200 is doing it.

Smaller SPAN allows to better look at the transponders.

Measurement of an anlogue TV channel (video and audio)

No significant HUM - which is of course due to the optic distribution.

Want to look at the individual TV lines? No problem with the built-in oscilloscope mode for TV line rendering...

Measuring Video and CNR.

Measuring the timing.

This picture shows the automatic detection of IPTV broadcasts in the network. No user interaction required - all streams are found within few seconds. I have no idea how the Deviser S7200 does that!

Even in IPTV mode, it is possible to call the TS analyser and look into the contents of the transport stream.

You can look at bandwidth while rendering the life picture...

...or measure packet latency.

"Basic" information about the current TS.

Priority measurements according TR101290.

Display of all events.

Pie chart with bandwidth of each service.

PAT

NIT

Service List

Capturing individual frames

Relaxing and looking at aeronatics communication in waterfall diagram...

"This is TAP1234 approaching..."

All brief communications are visible for longer periods thanks to the waterfall diagram, which is considerably faster and with higher resolution, than on the S7000.

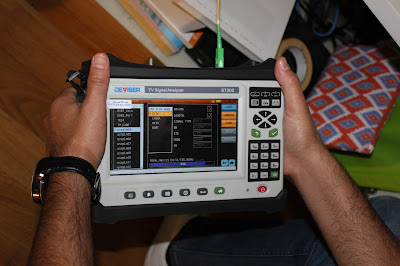

The S7200 is comfortable to hold with one hand or two hands.

Me measuring the optic fibre at a friends house to check if his operator (Vodafone - "fibre to home") is better than mine (NOS - "coaxial")... With the S7200 I can measure ANY signal!

You can download the datasheet here: http://www.devisertek.com/uploads/3/4/7/9/34796732/s7200_datasheet_170111.pdf
